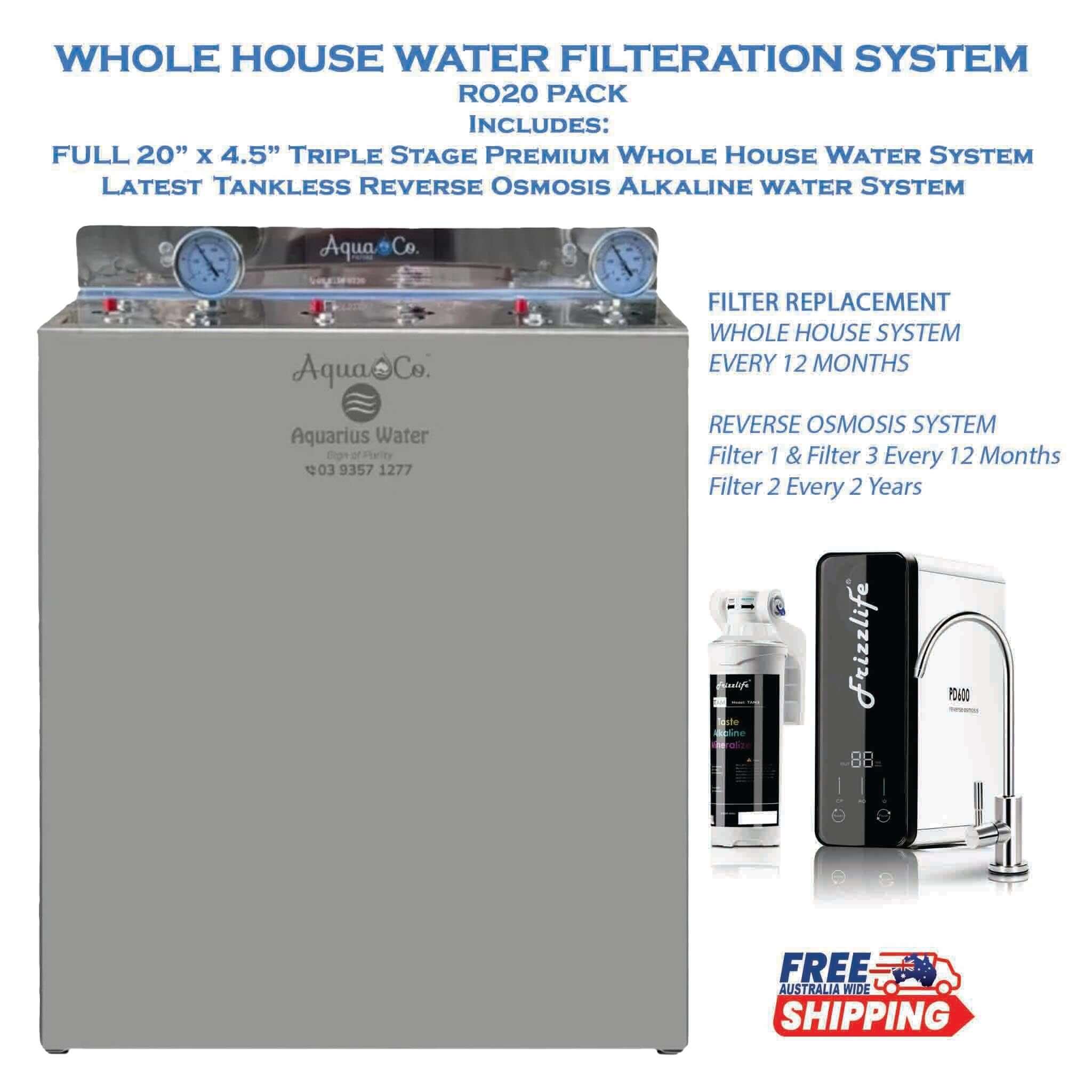

Whole House Water Filter System RO20 Pack

This whole house system boasts a unique design feature that sets it apart from other systems on the market. The special cartridges in this system have a nipple at the top that connects to the headcap, and the bottom of the cartridge has no hole, which means that water can only enter the cartridge through the side and flow into the centre core.

Unlike other systems, the Aquaco whole house range is built with superior cartridges that are guaranteed to seal, providing you with the cleanest and purest water possible.

• Higher removal rates
• Higher flow rates (up to 50 LPM)
• Last longer (up to 18 months)
• No pressure drop
• High Porosity
• 12+ international certifications
• 20” instead of 10” or 15”

Sediment Filter – Contaminant Reduction

– Particles >5 microns……………99.999% (Sand, silt, rust, clay, algae)

Carbon Filter – Contaminant Reduction

– Chlorine………………………………100% (Taste & Odours)
– Turbidity………………………………99% (Colour)
– VOCs…………………………………..99%
– Pesticides……………………………97%

Aragon Filter – Contaminant Reduction

– Particles >2 microns……………99.999%
– Lead……………………………………99.95%
– Copper………………………………..99.99%
– Zinc, Cadmium…………………….100%
– Cesium……………………………….98%
– Chlorine………………………………100%
– Chloramines………………………..>90% +
– Pesticides……………………………97%
– Iron……………………………………..90%+
– Aluminium……………………………97%
– Turbidity………………………………99%
– Oil Products…………………………90%
– Legionella……………………………99.99987%
– Salmonella Typhimurium……..99.998%
– Poliovirus…………………………….99.84%
– Rotavirus……………………………..99.99%
– Hepatitus A virus………………….96%
– Bacteria E.coli……………………..100%
– Pseudomonas aeruginosa……100%
– Colifag f-2……………………………100%
– Eterobacter cloaceae……………100%

• Stage 1 – 100% Polypropylene Triple Gradient Sediment filter: Removes Dust, Sediment, Dust, Dirt, Rust, Sand, Slit, and Algae.

• Stage 2 – Coconut Shell Activated Carbon Filter for effective reduction of chlorine, volatile organic compounds, Pesticides, herbicides, taste and odour from water.

• Stage 3 – The Aragon Filter represents the most up to- date technology for Water Treatment as it is capable of reducing high percentages of heavy metals (on top of chlorine, taste, odor, pesticides, herbicides and VOCs) as well as Virus, Bacteria and Parasites removal.

It also inhibits scale growth (but it does NOT Soften the water) especially significant in an area with high TDS (Total Dissolved Solids).

Aragon is a composite polymeric material presented as a single block, with a bacteriostatic silver addition, that makes it possible to get completely safe and healthy drinking water.

Long polymer chains are formed in the production process, providing a porous yet mechanically strong structure. These polymer chains are coated and enable a highly effective ion exchange process.

• To ensure optimal performance and hygiene and to prevent build up of contaminants, we recommend that filters are not used any longer than 18 months. However, replacement frequency depends on water quality and usage.
• Filters should also be changed when rated capacity is reached, or when flow becomes too slow.

AquaCo Whole House Filtration System Servicing Video

System Dimensions: 600 W x 740 H x 220 D (mm)

• 3 x Triple UV Protected Water Filter Housing
• 1 x Stainless Steel Heavy Duty Bracket
• 2 x Stainless Steel/Glass Pressure Gauges
• 1 x Stainless Steel Frame
• 1 x Stainless Steel Cover/Enclosure
• 1 x Spanner
• 2 x Stainless Steel/Glass Pressure Gauges
• 1 x 20″ x 4.5″ Triple Gradient Sediment Filter
• 1 x 20″ x 4.5″ High Quality Carbon Block Water Filter
• 1 x 20″ x 4.5′ Silver Carbon Filter for Standard Filtration OR Aragon for Premium Filtration

Guidelines and Warnings

• Where line pressure exceeds 520 kPa, a pressure limiting valve must be installed. Protect the housing from water hammer.
• Use on cold water line only (with water up to 52°C). For installation over 52°C please enquire as to a suitable housing. Protect the housing from freezing.
• Avoid installing in direct sunlight.
• Use PTFE thread seal tape on all connections. Use of pipe sealants will void warranty.
• Do not overtighten. Too much tape or over tightening may cause head to split.
• For point of entry installations an approved dual check back flow prevention device must be fitted in accordance with national plumbing product codes.
• Do not use with water that is microbiologically unsafe or with water of unknown quality without adequate disinfection.
• This product must be installed in accordance with local plumbing regulations by a licensed plumber.

• Sediment Filter – Certifications:

Tested and Certified by NSF International under NSF/ANSI Standard 42 for material requirements only and and FDA CFR Title 21.

• Carbon Filter – Certifications:

Tested and Certified by NSF International under NSF/ANSI Standard 42 for material requirements only.

• Aragon Filter – Certifications

Certified by Institut Pasteur de Lille (France)
Certified by S.M Kirov Military Medical Academy (Russia)
Certified by The Research Institute of Influenza (Russia)
Certified by V.G Khlopin Radium Institute (Russia)
Certified by The Research Institute of Epidemiology and Microbiology (Russia)
Certifued by IFTS (France)
Certified by IAPMO (United States)
Certified by University of Ferrara (Italy)
Certified by NSF 42 and 53

• Other Components – Certifications

System WaterMark Certification No. 23448

Filters and Components are Tested and Certified by NSF International under NSF/ANSI Standard 42 for material requirements only.

Manufacturing facilities are ISO 9001 and ISO 14001 Certified.

ISO 9001 is the ultimate benchmark for quality management, this means products meet expectations and quality standards.

The ISO 14001 refers to the fulfilment in environmental performance requirements such as, resource efficiency, waste reduction, costs easing, environmental impact measurement and competitive advantage in supply chain design, these among others.

• What’s the warranty?

All our filtration systems have 5* years warranty in parts and labour.

• Can I see it?

You are welcome to come in to our showroom at 30 Fabio Court, Campbellfield VIC 3061.

If you can’t come to our showroom feel free to call us and talk to one of our technicians for a personalised session, explaining the product and answering any question you may have. Learning safely from the comfort of your home.

• What’s the use of a whole house water filter?

Whole House Water Filters are an all-in-one solution for filtered water in the entire household. This is because they are installed at the entry point of the scheme water supply of your house. Therefore, they can filter the water before coming into the house.

As a result, the water coming into your house will be free from dirt and the contaminants that concern you the most.

• Will I have Hot and Cold Filtered Water?

Generally, other water filters are installed either at the shower, kitchen or in the laundry and are connected to the cold water line, so in this way, you would end up with three separate water filters in your house, and if you use the hot water, the hot water is not filtered.

With a whole house water filter, you can avoid having separate filters scattered throughout the house and have only one water filter for your entire house. And because is installed before the water heater, the hot water line in your house will be filtered as well.

• Will my system get hot during the summer?

No, this 3 Stage System has high quality components, for example, has a frame, a bracket, and a cover made of stainless steel. The pressure gauges combine glass and stainless steel. The stainless steel components are corrosion resistant and protect the system from UV rays, sun damage and other extreme conditions. Furthermore, stainless steel low conductivity and reflective properties keep the system cool during the summer.

In addition, because the cover is made of stainless steel will not discolour or go brittle like plastic covers do.

Also, the Stainless Steel Frame and Bracket give rigidity to the system this means that these will not rust or bend over time compared to powder coated components found in other systems.

• Will the connections crack under pressure?

We use 1” or 3/4″ heavy-duty brass reinforced connections for high water pressure and maximum durability. Other systems in the market have plastic ports and these crack easily under pressure.

• Can I change the filters myself?

Yes, we use simple twist-off housings and drop-and-go filter design for quick replacement.

An opening tool (spanner) is supplied for tightening and screwing the filter housings.

• How long do the filters last?

Each set of filters lasts for up to 300,000 Litres (depends on water quality) or 12 months of use on average.

Also, because the filters are 20″ x 4.5″ in size, they offer twice filtration capacity compared to 10″ x 4.5″ filters. This also means that our 20″ x 4.5″ filters need changing every 12-18 months instead of 3-6 months like 10″ x 4.5″ filters.

• What’s the difference between 20″ x 4.5″ and 10″ x 4.5″ Filters?

100% More Capacity – Our filters are 20” x 4.5″ in size, they double the contact time, flow rates, longevity and chemical removal rates, compared to smaller 10” x 4.5″ or 15" x 4.5" filters on the market.
You get the most effective filtration on the market !

Does it require a licensed plumber to do the installation of the system?

Yes, Whole House Water Filters require handling of the main water pipeline to the property, only a licensed plumber is authorised to do the installation. However, maintenance like the replacement of filter cartridges, etc., does not require plumber services. Where there is no handling of the main water pipeline, DIY can be undertaken. Talk to us before making the decision.

About the Frizzlife Reverse Osmosis unit:

Balancing alkalinity and Restoring essential minerals. We know what is the best for your daily drinking water

Easy installation?

Besides well-organized instruction manual, you can also find step-to-step installation video on Frizzlife channel. You can put every part together and make the system work by yourself!

✔Tutorial Video

✔Clear instruction manual

Alkaline Remineralization filter

TAM3 filter solves inherited issues of conventional RO systems. Traditional RO filters removes essential minerals from water and the filtered water is slightly acidic.

PD600 under counter filter uses alkaline remineralization filter, which restores essential minerals and produces alkaline RO water with better taste!

With the help of step-to-step instructional manual and tutorial video, you can completely install the PD600 water purification system in a few minutes by yourself. The filter replacement is super easy. The first two stages of filter can be replaced only with one single turn ONE SINGLE TURN after shutting off the power supply. To change TAM3 filter, you even don’t need to shut off the power supply.

Money Saver & Green Choice

TAM3 filter abandons conventional all-in-one filter housing: you only need to change the filter cartridge inside instead of throwing away the whole plastic part. Enjoy ultra-pure RO water at lower costs!

Real-time TDS and Filter Life Monitoring

When the system keeps producing water, the TDS reading is always being updated for every 1 minute. The built-in smart TDS system monitors water quality 24/7.

The color-coded indicators will remind you to change the filter cartridges in advance.

3X Longer Life

PD600 under counter filter uses pleated 2-in-1 composite filter cartridge (ASR211), the removing capability of which is better than traditional sediment filter. What's more, pleated filter has 3 TIME LONGER service life compared with normal filter, which also protect and prolong the lifespan of RO membrane.

✔3X Longer life

✔Better removing capacity

✔Protect RO membrane

Stage 1st 2nd 3rdFilter type
CP Compounded FilterRO Membrane Alkaline & Remineralize

Please note: The Whole House System is watermarked but the Frizzlife is not watermarked.
